# why

1 为什么要用kube-eventer这个组件

我的公司网络环境特别复杂，还是那种传统模式，生产环境和开发环境是网络隔离的，简直不要太痛苦。

prometheus的报警有时候不能够明确的反应哪里的问题

官方地址:[https://github.com/AliyunContainerService/kube-eventer](url)

## how

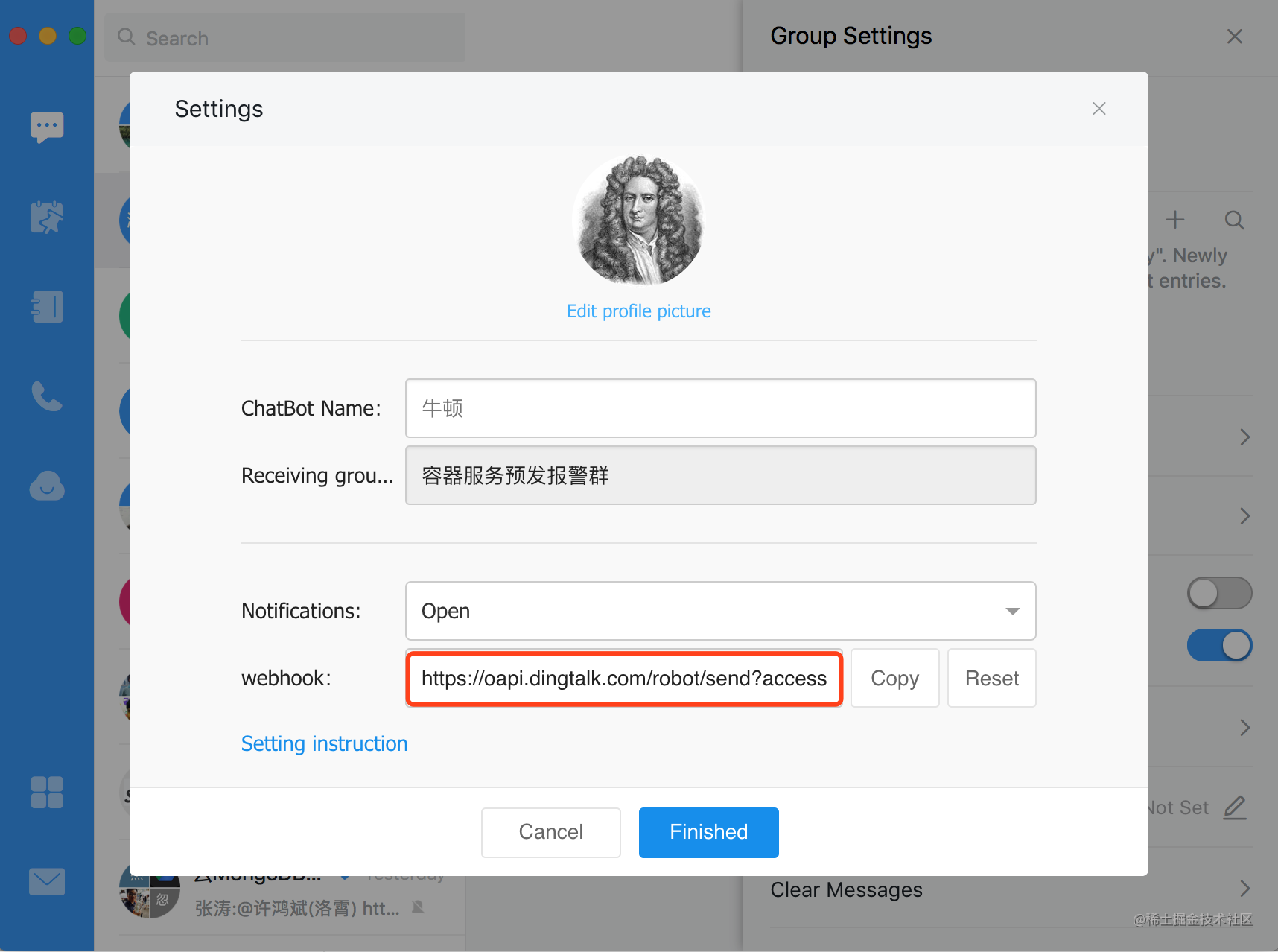

按照github上新建一个钉钉机器人，把webhook记下来

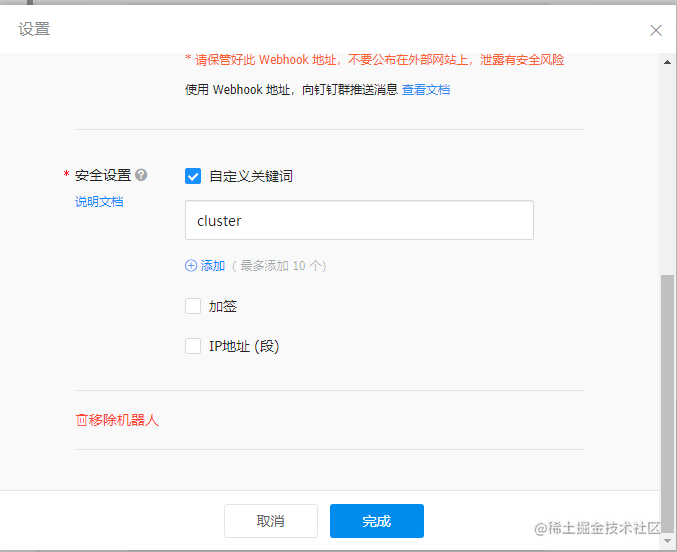

后面的设置里面选择关键词


按照github上的yaml:

````

apiVersion: apps/v1

kind: Deployment

metadata:

  labels:

    name: kube-eventer

  name: kube-eventer

  namespace: kube-system

spec:

  replicas: 1

  selector:

    matchLabels:

      app: kube-eventer

  template:

    metadata:

      labels:

        app: kube-eventer

      annotations:

        scheduler.alpha.kubernetes.io/critical-pod: ''

    spec:

      dnsPolicy: ClusterFirstWithHostNet

      serviceAccount: kube-eventer

      containers:

        - image: registry.aliyuncs.com/acs/kube-eventer-amd64:v1.2.0-484d9cd-aliyun

          name: kube-eventer

          command:

            - "/kube-eventer"

            - "--source=kubernetes:https://kubernetes.default"

            ## .e.g,dingtalk sink demo

            - --sink=dingtalk:[your_webhook_url]&label=[your_cluster_id]&level=[Normal or Warning(default)]

          env:

          # If TZ is assigned, set the TZ value as the time zone

          - name: TZ

            value: "Asia/Shanghai"

          volumeMounts:

            - name: localtime

              mountPath: /etc/localtime

              readOnly: true

            - name: zoneinfo

              mountPath: /usr/share/zoneinfo

              readOnly: true

          resources:

            requests:

              cpu: 100m

              memory: 100Mi

            limits:

              cpu: 500m

              memory: 250Mi

      volumes:

        - name: localtime

          hostPath:

            path: /etc/localtime

        - name: zoneinfo

          hostPath:

            path: /usr/share/zoneinfo

---

apiVersion: rbac.authorization.k8s.io/v1

kind: ClusterRole

metadata:

  name: kube-eventer

rules:

  - apiGroups:

      - ""

    resources:

      - configmaps

      - events

    verbs:

      - get

      - list

      - watch

---

apiVersion: rbac.authorization.k8s.io/v1

kind: ClusterRoleBinding

metadata:

  name: kube-eventer

roleRef:

  apiGroup: rbac.authorization.k8s.io

  kind: ClusterRole

  name: kube-eventer

subjects:

  - kind: ServiceAccount

    name: kube-eventer

    namespace: kube-system

---

apiVersion: v1

kind: ServiceAccount

metadata:

  name: kube-eventer

  namespace: kube-system

````

别的都不用管，只需要配置- --sink=dingtalk:[your_webhook_url]&label=[your_cluster_id]&level=[Normal or Warning(default)] 这一行就可以了

label 填入dingding的自定义关键词cluster

level 填入Warning 或者Normal

有需要的也可以加入namespace

最后的地址变为- --sink=dingtalk:https://xxxxx/robot/send?access_token=8867b9254aa5fff23bd8b9086b9cb12758538f3xxxxd118a13a3edf95b5bad&label=cluster&level=Warning

然后就是万能的kubectl apply 安装yaml


搞定！

PS: 生产环境是不能联网的，发送钉钉需要走层代理，怎么配置都不好使，最后在源码里面找到原因了。

[https://github.com/AliyunContainerService/kube-eventer/blob/master/sinks/dingtalk/dingtalk.go](url)

`

func (d *DingTalkSink) Ding(event *v1.Event) {

    value := url.Values{}

    if d.Namespaces != nil {

        skip := true

        for _, namespace := range d.Namespaces {

            if namespace == event.Namespace {

                skip = false

                break

            }

        }

        if skip {

            return

        }

    }

    if d.Kinds != nil {

        skip := true

        for _, kind := range d.Kinds {

            if kind == event.InvolvedObject.Kind {

                skip = false

                break

            }

        }

        if skip {

            return

        }

    }

    msg := createMsgFromEvent(d, event)

    if msg == nil {

        klog.Warningf("failed to create msg from event,because of %v", event)

        return

    }

    msg_bytes, err := json.Marshal(msg)

    if err != nil {

        klog.Warningf("failed to marshal msg %v", msg)

        return

    }

    value.Set("access_token", d.Token)

    if d.Secret != "" {

        t := time.Now().UnixNano() / 1e6

        value.Set("timestamp", fmt.Sprintf("%d", t))

        value.Set("sign", sign(t, d.Secret))

    }

    b := bytes.NewBuffer(msg_bytes)

    request, err := http.NewRequest(http.MethodPost, fmt.Sprintf("https://%s", d.Endpoint), b)

    if err != nil {

        klog.Errorf("failed to create http request")

        return

    }

    request.URL.RawQuery = value.Encode()

    request.Header.Add("Content-Type", "application/json;charset=utf-8")

    resp, err := (&http.Client{}).Do(request)

    if err != nil {

        klog.Errorf("failed to send msg to dingtalk. error: %s", err.Error())

        return

    }

    defer resp.Body.Close()

    if resp != nil && resp.StatusCode != http.StatusOK {

        klog.Errorf("failed to send msg to dingtalk, because the response code is %d", resp.StatusCode)

        return

    }

}

`

`request, err := http.NewRequest(http.MethodPost, fmt.Sprintf("https://%s", d.Endpoint), b)`

代码里面把https写死了，如果有代理模块，需要改为http,在用dockerfile生成镜像。
